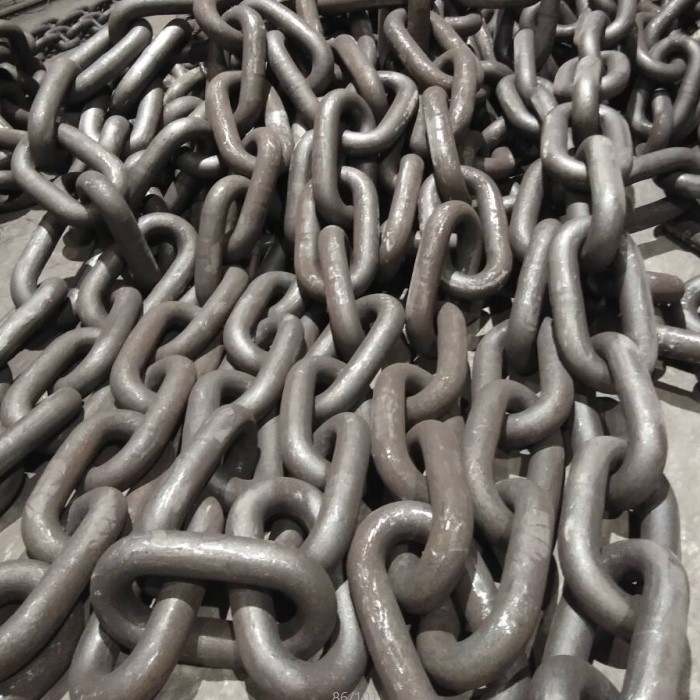

Open Link Anchor Chain

Open Link Anchor Chain
Grade: U1/U2/U3/U4
Size: 19~182mm
Production: Flush Butt Welded
Quality: ABS KR LR BV NK DNV-GL RMRS RINA.. IACS cert.
Annual Production: over 300000T
Production time: about 15days for ugently we have stock can delivery in 1~3 days

产品详情

China Shipping Anchor Chain(Jiangsu)Co., Ltd a Leading Chinese Anchor Chain, Open Link Anchor Chain, Studlink Anchor Chain, Marine Anchor Chain, Ship Anchor Chain Manufactuer Supplier Factory with DNV-GL KR LR BV NK CCS ABS RMRS RINA approval

Test Load of Studless Chains & Fittings

Norminal Chain Diameter(mm)	Grade2		Grade3		Weight (Kg/27.5m)
Norminal Chain Diameter(mm)	Proof Test Load(KN)	Breaking Test Load(KN)	Proof Test Load(KN)	Breaking Test Load(KN)	Weight (Kg/27.5m)
10	25.80	51.60	-	-	-
11	31.20	62.40	-	-	-
12.5	41.20	82.60	56.4	112.8	85
14	51.00	101.90	70.76	141.51	107
16	66.20	132.30	92.42	184.82	139
17.5	78.89	157.78	110.55	221.10	178
19	93.60	187.20	130.32	260.64	218
20.5	108.64	217.27	151.70	303.42	229
22	125.40	250.90	174.70	349.40	265
24	149.90	298.90	207.90	415.80	344
26	175.40	350.80	244.00	488.00	401
28	203.80	406.70	283.00	566.00	460
30	234.20	457.50	324.90	649.80	523
32	265.60	531.20	369.60	739.30	589
34	299.90	599.80	417.30	834.60	660
36	336.10	672.30	467.80	935.70	742
38	374.40	748.70	521.30	1042.50	823
40	414.50	829.10	577.60	1155.20	957
42	457.70	915.30	636.80	1273.60	1005
44	502.70	999.60	698.90	1397.80	1110
46	548.80	1097.60	763.90	1527.80	1212
48	597.80	1195.60	831.70	1663.50	1334
50	648.80	1293.60	902.50	1805.00	1430
52	697.63	1395.26	976.14	1952.28	1486
54	752.33	1504.66	1052.68	2105.36	1648
56	809.09	1618.18	1132.10	2264.20	1716
58	867.91	1735.82	1214.40	2428.80	1845
60	928.80	1857.60	1299.60	2599.20	1973

Our Anchor chain can be supplied, as can all chain link fittings, with test certification to all the relevant class societies.

We keep some size in stock from 40MM to 122MM about 12 length and accessories which can delivery in 1~3 days.

We carry an extensive range of anchors ready for fast delivery anywhere in the world. We always have a good number of second anchors in stock

For details please feel free to contact us

China Shipping Anchor Chain(Jiangsu)Co., Ltd a Leading Chinese Anchor Chain, Studlink Anchor Chain, Marine Anchor Chain, Ship Anchor Chain Manufactuer Supplier Factory with DNV-GL KR LR BV NK CCS ABS RMRS RINA approval
